#include "gensvm_sparse.h"

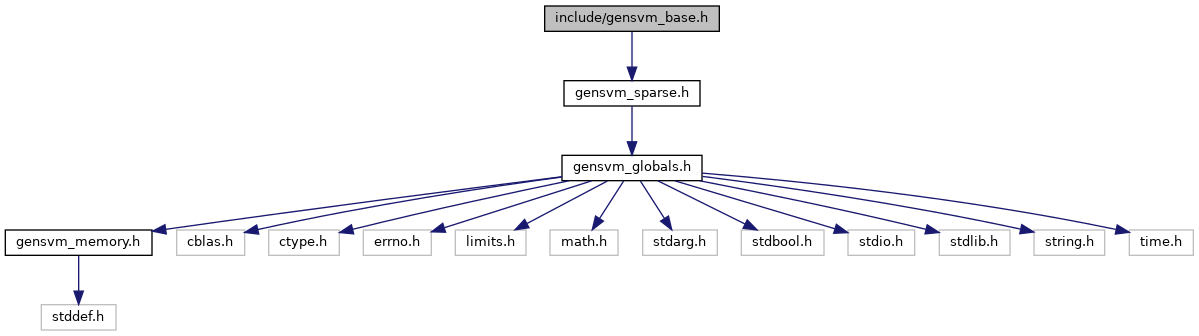

Include dependency graph for gensvm_base.h:

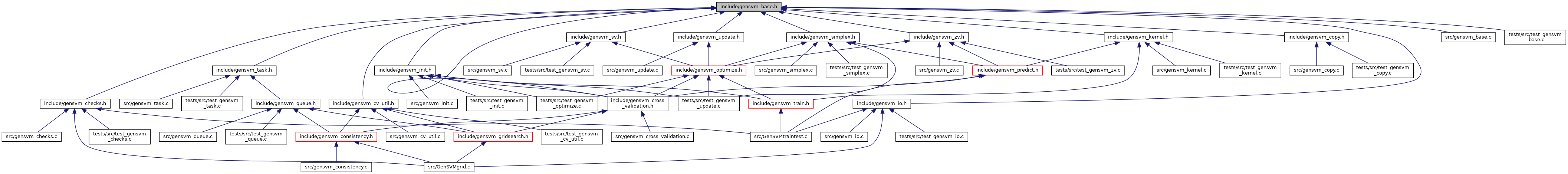

This graph shows which files directly or indirectly include this file:

Classes
struct	GenData
	A structure to represent the data. More...

struct	GenModel
	A structure to represent a single GenSVM model. More...

struct	GenWork
	A structure to hold the GenSVM workspace. More...

Functions
struct GenModel *	gensvm_init_model (void)
	Initialize a GenModel structure. More...

void	gensvm_allocate_model (struct GenModel *model)
	Allocate memory for a GenModel. More...

void	gensvm_reallocate_model (struct GenModel *model, long n, long m)
	Reallocate memory for GenModel. More...

void	gensvm_free_model (struct GenModel *model)
	Free allocated GenModel struct. More...

struct GenData *	gensvm_init_data (void)
	Initialize a GenData structure. More...

void	gensvm_free_data (struct GenData *data)
	Free allocated GenData struct. More...

struct GenWork *	gensvm_init_work (struct GenModel *model)
	Initialize the workspace structure. More...

void	gensvm_free_work (struct GenWork *work)
	Free an allocated GenWork instance. More...

void	gensvm_reset_work (struct GenWork *work)
	Reset all matrices of a GenWork instance. More...

Detailed Description

Header file for gensvm_base.c.

Author: G.J.J. van den Burg

Date: 2016-05-01

Contains documentation and declarations of GenModel and GenData, and function declarations for the functions in gensvm_base.c.

Copyright: Copyright 2016, G.J.J. van den Burg.

This file is part of GenSVM.

GenSVM is free software: you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation, either version 3 of the License, or (at your option) any later version.

GenSVM is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details.

You should have received a copy of the GNU General Public License along with GenSVM. If not, see http://www.gnu.org/licenses/.

Definition in file gensvm_base.h.

Function Documentation

◆ gensvm_allocate_model()

void gensvm_allocate_model ( struct GenModel * model )

Allocate memory for a GenModel.

This function can be used to allocate the memory needed for a GenModel. All arrays in the model are specified and initialized to 0.

Parameters

[in] model GenModel to allocate

Definition at line 144 of file gensvm_base.c.

◆ gensvm_free_data()

void gensvm_free_data ( struct GenData * data )

Free allocated GenData struct.

Simply free a previously allocated GenData struct by freeing all its components. Note that the data struct itself is also freed here.

Parameters

[in] data GenData struct to free

Definition at line 73 of file gensvm_base.c.

Here is the call graph for this function:

◆ gensvm_free_model()

void gensvm_free_model ( struct GenModel * model )

Free allocated GenModel struct.

Simply free a previously allocated GenModel by freeing all its component arrays. Note that the model struct itself is also freed here.

Parameters

[in] model GenModel to free

Definition at line 211 of file gensvm_base.c.

◆ gensvm_free_work()

void gensvm_free_work ( struct GenWork * work )

Free an allocated GenWork instance.

This function simply frees every matrix allocated for in the GenWork workspace.

Parameters

[in] work a pointer to an allocated GenWork instance

Definition at line 277 of file gensvm_base.c.

◆ gensvm_init_data()

struct GenData* gensvm_init_data ( void )

Initialize a GenData structure.

A GenData structure is initialized and default values are set. A pointer to the initialized data is returned.

Returns: initialized GenData

Definition at line 45 of file gensvm_base.c.

◆ gensvm_init_model()

struct GenModel* gensvm_init_model ( void )

Initialize a GenModel structure.

A GenModel structure is initialized and the default value for the parameters are set. A pointer to the initialized model is returned.

Returns: initialized GenModel

Definition at line 102 of file gensvm_base.c.

◆ gensvm_init_work()

struct GenWork* gensvm_init_work ( struct GenModel * model )

Initialize the workspace structure.

During the computations in gensvm_get_update(), a number of matrices need to be allocated which are used to store intermediate results. To avoid reallocating these matrices at every call to gensvm_get_update(), we create here a workspace with these matrices. This workspace is created once by gensvm_optimize(), and is passed to gensvm_get_update() and gensvm_get_loss(). See the documentation of the GenWork structure for information on each allocated field.

Parameters

[in] model a GenModel with the dimensionality of the problem

Returns: an allocated GenWork instance

Definition at line 245 of file gensvm_base.c.

◆ gensvm_reallocate_model()

void gensvm_reallocate_model	(	struct GenModel *	model,
		long	n,
		long	m
	)

Reallocate memory for GenModel.

This function can be used to reallocate existing memory for a GenModel, upon a change in the model dimensions. This is used in combination with kernels.

Parameters

[in]	model	GenModel to reallocate
[in]	n	new value of GenModel->n
[in]	m	new value of GenModel->m

Definition at line 172 of file gensvm_base.c.

◆ gensvm_reset_work()

void gensvm_reset_work ( struct GenWork * work )

Reset all matrices of a GenWork instance.

In the gensvm_get_update() function, it is expected for some matrices that all their entries are initialized to 0. This function sets the memory for each of the matrices in the GenWork workspace to 0 to facilitate this.

Parameters

[in,out] work an initialized GenWork instance. On exit, the matrices of the GenWork instance are all initialized to 0.

Definition at line 302 of file gensvm_base.c.
