Header file for gensvm_kernel.c. More...

#include "gensvm_base.h"

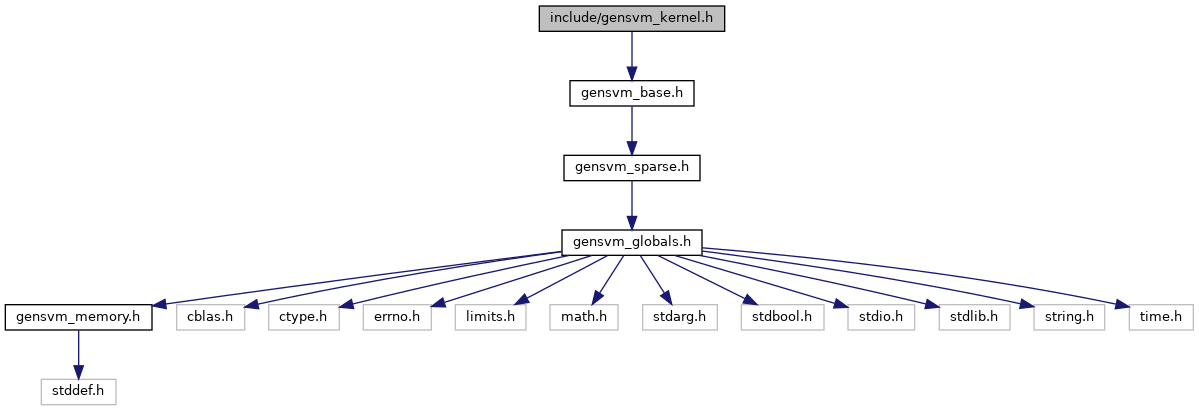

Include dependency graph for gensvm_kernel.h:

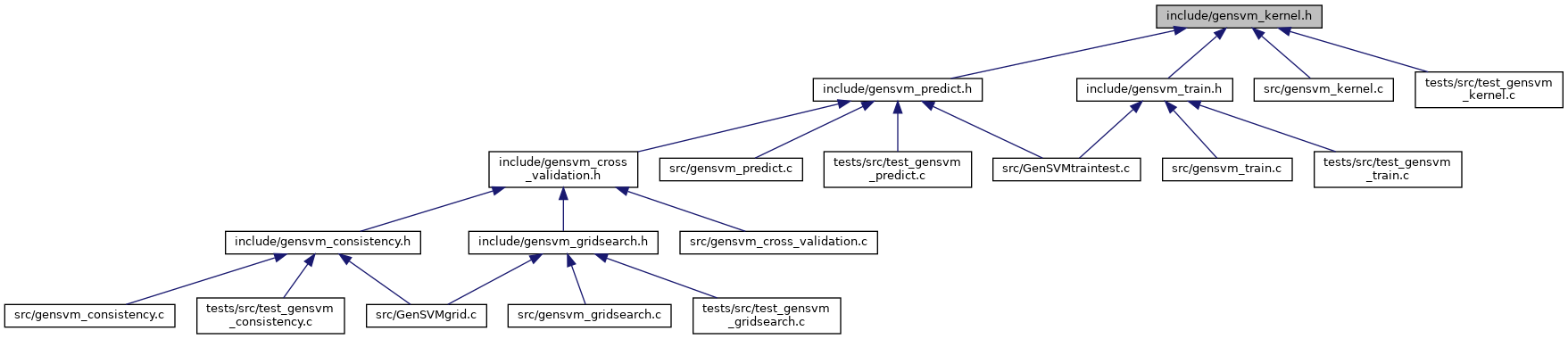

This graph shows which files directly or indirectly include this file:

Functions
void	gensvm_kernel_copy_kernelparam_to_data (struct GenModel model, struct GenData data)
	Copy the kernelparameters from GenModel to GenData. More...

void	gensvm_kernel_preprocess (struct GenModel model, struct GenData data)
	Do the preprocessing steps needed to perform kernel GenSVM. More...

void	gensvm_kernel_postprocess (struct GenModel model, struct GenData traindata, struct GenData *testdata)
	Compute the kernel postprocessing factor. More...

void	gensvm_kernel_compute (struct GenModel model, struct GenData data, double *K)
	Compute the kernel matrix. More...

long	gensvm_kernel_eigendecomp (double K, long n, double cutoff, double P_ret, double *Sigma_ret)
	Find the (reduced) eigendecomposition of a kernel matrix. More...

double *	gensvm_kernel_cross (struct GenModel model, struct GenData data_train, struct GenData *data_test)
	Compute the kernel crossproduct between two datasets. More...

void	gensvm_kernel_trainfactor (struct GenData data, double P, double *Sigma, long r)
	Compute the training factor as part of kernel preprocessing. More...

void	gensvm_kernel_testfactor (struct GenData testdata, struct GenData traindata, double *K2)
	Calculate the matrix product for the testfactor. More...

double	gensvm_kernel_dot_rbf (double x1, double x2, long n, double gamma)
	Compute the RBF kernel between two vectors. More...

double	gensvm_kernel_dot_poly (double x1, double x2, long n, double gamma, double coef, double degree)
	Compute the polynomial kernel between two vectors. More...

double	gensvm_kernel_dot_sigmoid (double x1, double x2, long n, double gamma, double coef)
	Compute the sigmoid kernel between two vectors. More...

int	dsyevx (char JOBZ, char RANGE, char UPLO, int N, double A, int LDA, double VL, double VU, int IL, int IU, double ABSTOL, int M, double W, double Z, int LDZ, double WORK, int LWORK, int IWORK, int *IFAIL)
	Compute the eigenvalues and optionally the eigenvectors of a symmetric matrix. More...

double	dlamch (char CMACH)
	Determine double precision machine parameters. More...

Detailed Description

Header file for gensvm_kernel.c.

Author: G.J.J. van den Burg

Date: 2014-01-07

Contains function declarations for computing the kernel matrix in nonlinear MSVMGen. Additional kernel functions should be included here and in gensvm_kernel.c

Copyright: Copyright 2016, G.J.J. van den Burg.

This file is part of GenSVM.

GenSVM is free software: you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation, either version 3 of the License, or (at your option) any later version.

GenSVM is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details.

You should have received a copy of the GNU General Public License along with GenSVM. If not, see http://www.gnu.org/licenses/.

Definition in file gensvm_kernel.h.

Function Documentation

◆ dlamch()

double dlamch ( char CMACH )

Determine double precision machine parameters.

This is a wrapper function around the external LAPACK function.

See the LAPACK documentation at: http://www.netlib.org/lapack/explore-html/d5/dd4/dlamch_8f.html

Definition at line 575 of file gensvm_kernel.c.

◆ dsyevx()

int dsyevx	(	char	JOBZ,
		char	RANGE,
		char	UPLO,
		int	N,
		double *	A,
		int	LDA,
		double	VL,
		double	VU,
		int	IL,
		int	IU,
		double	ABSTOL,
		int *	M,
		double *	W,
		double *	Z,
		int	LDZ,
		double *	WORK,
		int	LWORK,
		int *	IWORK,
		int *	IFAIL
	)

Compute the eigenvalues and optionally the eigenvectors of a symmetric matrix.

This is a wrapper function around the external LAPACK function.

See the LAPACK documentation at: http://www.netlib.org/lapack/explore-html/d2/d97/dsyevx_8f.html

Definition at line 550 of file gensvm_kernel.c.

◆ gensvm_kernel_compute()

void gensvm_kernel_compute	(	struct GenModel *	model,
		struct GenData *	data,
		double *	K
	)

Compute the kernel matrix.

This function computes the kernel matrix of a data matrix based on the requested kernel type and the kernel parameters. The potential types of kernel functions are document in KernelType. This function uses a naive multiplication and computes the entire upper triangle of the kernel matrix, then copies this over to the lower triangle.

Parameters

[in]	model	a GenModel structure with the model
[in]	data	a GenData structure with the data
[out]	K	an nxn preallocated kernel matrix

Definition at line 157 of file gensvm_kernel.c.

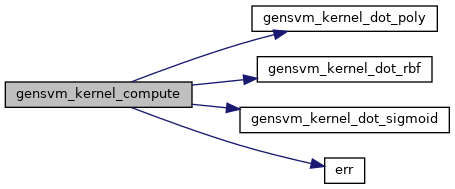

Here is the call graph for this function:

◆ gensvm_kernel_copy_kernelparam_to_data()

void gensvm_kernel_copy_kernelparam_to_data	(	struct GenModel *	model,
		struct GenData *	data
	)

Copy the kernelparameters from GenModel to GenData.

This is a little utility function to copy the kernel type and kernel parameters from a GenModel struct to a GenData struct.

Parameters

[in]	model	a GenModel struct
[in]	data	a GenData struct

Definition at line 46 of file gensvm_kernel.c.

◆ gensvm_kernel_cross()

double* gensvm_kernel_cross	(	struct GenModel *	model,
		struct GenData *	data_train,
		struct GenData *	data_test
	)

Compute the kernel crossproduct between two datasets.

Given a training set $\textbf{X}$ with feature space mapping $\boldsymbol{\Phi}$ and a test set $\textbf{X}_2$ with feature space mapping $\boldsymbol{\Phi}_2$ , the crosskernel $\textbf{K}_2$ is given by $\textbf{K}_2 = \boldsymbol{\Phi}_2 \boldsymbol{\Phi}'$ . Thus, an element in row $i$ and column $j$ in $\textbf{K}_2$ equals the kernel product between the $i$ -th row of $\textbf{X}_2$ and the $j$ -th row of $\textbf{X}$ .

Parameters

[in]	model	the GenSVM model
[in]	data_train	the training dataset
[in]	data_test	the test dataset

Returns: the matrix $\textbf{K}_2$

Definition at line 311 of file gensvm_kernel.c.

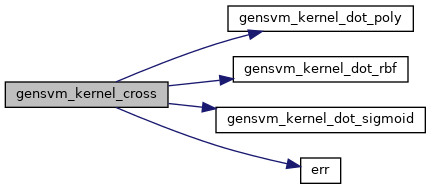

Here is the call graph for this function:

◆ gensvm_kernel_dot_poly()

double gensvm_kernel_dot_poly	(	double *	x1,
		double *	x2,
		long	n,
		double	gamma,
		double	coef,
		double	degree
	)

Compute the polynomial kernel between two vectors.

The polynomial kernel is computed between two vectors. This kernel is defined as

$k(x_1, x_2) = ( \gamma \langle x_1, x_2 \rangle + coef)^{degree}$

where $\gamma$ , $ coef $ and $ degree $ are kernel parameters.

Parameters

[in]	x1	first vector
[in]	x2	second vector
[in]	n	length of the vectors x1 and x2
[in]	gamma	gamma parameter of the kernel
[in]	coef	coef parameter of the kernel
[in]	degree	degree parameter of the kernel

Returns: kernel evaluation

Definition at line 503 of file gensvm_kernel.c.

◆ gensvm_kernel_dot_rbf()

double gensvm_kernel_dot_rbf	(	double *	x1,
		double *	x2,
		long	n,
		double	gamma
	)

Compute the RBF kernel between two vectors.

The RBF kernel is computed between two vectors. This kernel is defined as

$k(x_1, x_2) = \exp( -\gamma \| x_1 - x_2 \|^2 )$

where $\gamma$ is a kernel parameter specified.

Parameters

[in]	x1	first vector
[in]	x2	second vector
[in]	n	length of the vectors x1 and x2
[in]	gamma	gamma parameter of the kernel

Returns: kernel evaluation

Definition at line 472 of file gensvm_kernel.c.

◆ gensvm_kernel_dot_sigmoid()

double gensvm_kernel_dot_sigmoid	(	double *	x1,
		double *	x2,
		long	n,
		double	gamma,
		double	coef
	)

Compute the sigmoid kernel between two vectors.

The sigmoid kernel is computed between two vectors. This kernel is defined as

$k(x_1, x_2) = \tanh( \gamma \langle x_1 , x_2 \rangle + coef)$

where $\gamma$ and $ coef $ are kernel parameters.

Parameters

[in]	x1	first vector
[in]	x2	second vector
[in]	n	length of the vectors x1 and x2
[in]	gamma	gamma parameter of the kernel
[in]	coef	coef parameter of the kernel

Returns: kernel evaluation

Definition at line 530 of file gensvm_kernel.c.

◆ gensvm_kernel_eigendecomp()

long gensvm_kernel_eigendecomp	(	double *	K,
		long	n,
		double	cutoff,
		double **	P_ret,
		double **	Sigma_ret
	)

Find the (reduced) eigendecomposition of a kernel matrix.

Compute the reduced eigendecomposition of the kernel matrix. This uses the LAPACK function dsyevx to do the computation. Only those eigenvalues/eigenvectors are kept for which the ratio between the eigenvalue and the largest eigenvalue is larger than cutoff. This function uses the highest precision eigenvalues, twice the underflow threshold (see dsyevx documentation).

Parameters

[in]	K	the kernel matrix
[in]	n	the dimension of the kernel matrix
[in]	cutoff	mimimum ratio of eigenvalue to largest eigenvalue for the eigenvector to be included
[out]	P_ret	on exit contains the eigenvectors
[out]	Sigma_ret	on exit contains the eigenvalues

Returns: the number of eigenvalues kept

Definition at line 215 of file gensvm_kernel.c.

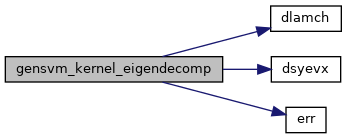

Here is the call graph for this function:

◆ gensvm_kernel_postprocess()

void gensvm_kernel_postprocess	(	struct GenModel *	model,
		struct GenData *	traindata,
		struct GenData *	testdata
	)

Compute the kernel postprocessing factor.

This function computes the postprocessing factor needed to do predictions with kernels in GenSVM. This is a wrapper around gensvm_kernel_cross() and gensvm_kernel_testfactor().

Parameters

[in]	model	a GenSVM model
[in]	traindata	the training dataset
[in,out]	testdata	the test dataset. On exit, GenData::Z contains the testfactor

Definition at line 125 of file gensvm_kernel.c.

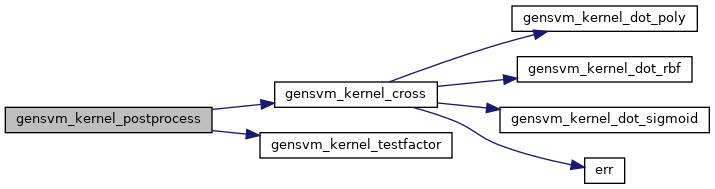

Here is the call graph for this function:

◆ gensvm_kernel_preprocess()

void gensvm_kernel_preprocess	(	struct GenModel *	model,
		struct GenData *	data
	)

Do the preprocessing steps needed to perform kernel GenSVM.

To achieve nonlinearity through kernels in GenSVM, a preprocessing step is needed. This preprocessing step computes the full kernel matrix, and an eigendecomposition of this matrix. Next, it computes a matrix $\textbf{M} = \textbf{P}\boldsymbol{\Sigma}$ which takes the role as data matrix in the optimization algorithm.

See also: gensvm_kernel_compute(), gensvm_kernel_eigendecomp(), gensvm_kernel_trainfactor(), gensvm_kernel_postprocess()

Parameters

[in]	model	input GenSVM model
[in,out]	data	input structure with the data. On exit, contains the training factor in GenData::Z, and the original data in GenData::RAW

Definition at line 75 of file gensvm_kernel.c.

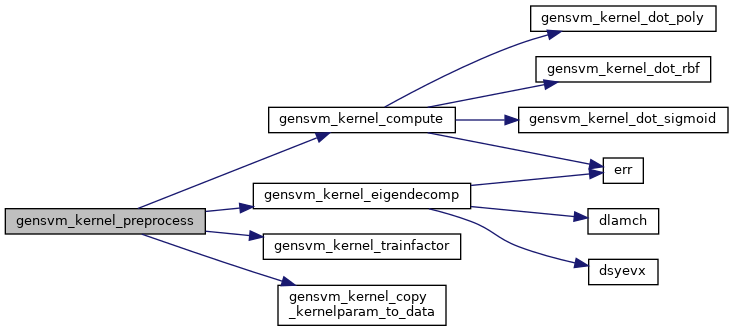

Here is the call graph for this function:

◆ gensvm_kernel_testfactor()

void gensvm_kernel_testfactor	(	struct GenData *	testdata,
		struct GenData *	traindata,
		double *	K2
	)

Calculate the matrix product for the testfactor.

To predict class labels when kernels are used, a transformation of the testdata has to be performed to get the simplex space vectors. This transformation is based on the matrix $\textbf{K}_2$ (as calculated by gensvm_make_crosskernel()) and the matrices $\textbf{M} = \textbf{P}*\boldsymbol{\Sigma}$ ) and $\boldsymbol{\Sigma}$ . The testfactor is equal to $\textbf{K}_2 \textbf{M} \boldsymbol{\Sigma}^{-2}$ .

Parameters

[out]	testdata	a GenData struct with the testdata, contains the testfactor in GenData::Z on exit preceded by a column of ones.
[in]	traindata	a GenData struct with the training data
[in]	K2	crosskernel between the train and test data

Definition at line 406 of file gensvm_kernel.c.

◆ gensvm_kernel_trainfactor()

void gensvm_kernel_trainfactor	(	struct GenData *	data,
		double *	P,
		double *	Sigma,
		long	r
	)

Compute the training factor as part of kernel preprocessing.

This function computes the matrix product $\textbf{M} = \textbf{P}\boldsymbol{\Sigma}$ and stores the result in GenData::Z, preceded by a column of ones. It also sets GenData::r to the number of eigenvectors that were includedin P and Sigma. Note that P and Sigma correspond to the reduced eigendecomposition of the kernel matrix.

Parameters

[in,out]	data	a GenData structure. On exit, GenData::Z and GenData::r are updated as described above.
[in]	P	the eigenvectors
[in]	Sigma	the eigenvalues
[in]	r	the number of eigenvalues and eigenvectors

Definition at line 365 of file gensvm_kernel.c.
